Cummins was founded in 1919, the H.Q is in Columbus, Indiana (USA), Cummins has service station all over the world, to provide reliable service for customers.

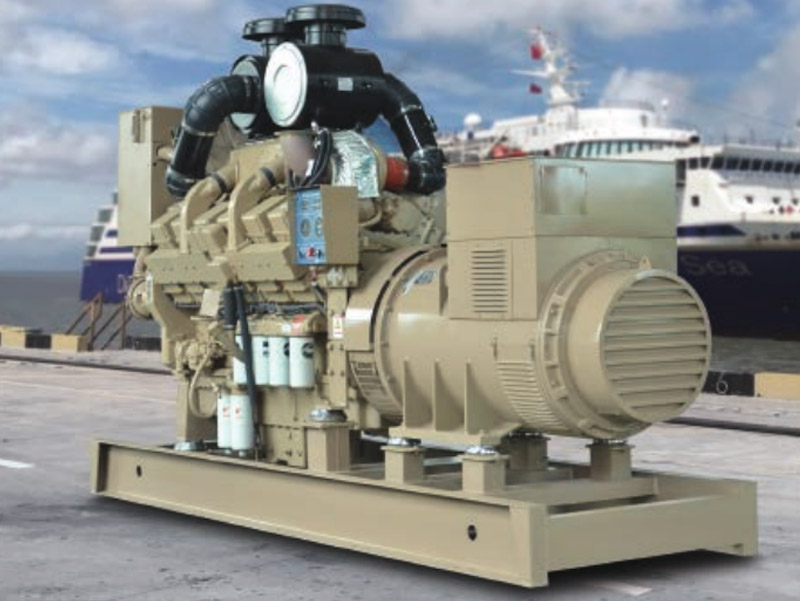

Marine diesel engines are the main driving force for civilian ships, small and medium-sized naval vessels and conventional submarines. According to its role in the ship can be divided into main engine and auxiliary engine. The main engine is used as the propulsion power of the ship, and the auxiliary engine is used to drive the generator, air compressor or water pump, etc. Marine mainframes most of the time operate at full load and sometimes under variable load conditions. Ships often sail in turbulence, Cummins marine diesel engines can work reliably with a trim of 15° to 25° and a heel of 15° to 35°. Cummins marine diesel engine series power range from 30KW to 1000KW, with high thermal efficiency, good economy, easy starting, and great adaptability to various types of ships.
Genset model | Standby Power | Prime Power | Cummins Engine | Specifications | ||
kVA | kW | kVA | kW | |||
WP-C24GF | 24 | 19 | 20 | 16 | 4B3.9-G11 | |
WP-C27GF | 27 | 22 | 25 | 20 | 4B3.9-G1 | |
WP-C34GF | 34 | 27 | 30 | 24 | 4B3.9-G12 | |
WP-C44GF | 44 | 35 | 40 | 32 | 4BT3.9-G1 | |
WP-C55GF | 55 | 44 | 50 | 40 | 4BTA3.9-G2 | |
WP-C66GF | 66 | 53 | 60 | 48 | 4BTA3.9-G2 | |
WP-C86GF | 86 | 69 | 76 | 61 | 4BTA3.9-G11 | |
WP-C110GF | 110 | 88 | 100 | 80 | 6BT5.9-G1 | |
WP-C125GF | 125 | 100 | 115 | 92 | 6BTA5.9-G2 | |
WP-C150GF | 150 | 116 | 135 | 108 | 6BTAA5.9-G2 | |
WP-C170GF | 170 | 136 | 155 | 124 | 6BTAA5.9-G12 | |
WP-C200GF | 200 | 160 | 181 | 145 | 6CTA8.3-G1/2 | |
WP-C220GF | 220 | 176 | 200 | 160 | 6CTAA8.3-G2 | |
WP-C275GF | 275 | 220 | 250 | 200 | 6LTAA8.9-G2 | |
WP-C305GF | 305 | 244 | 275 | 220 | NTA855-G1A | |
WP-C315GF | 315 | 252 | 280 | 224 | 6LTAA9.5-G3 | |
WP-C350GF | 350 | 280 | 317 | 254 | 6LTAA9.5-G1 | |
WP-C385GF | 385 | 308 | 350 | 280 | NTA855-G2A | |
WP-C415GF | 415 | 332 | 375 | 300 | NTAA855-G7 | |
WP-C440GF | 440 | 352 | 400 | 320 | QSNT-G3 | |
WP-C500GF | 500 | 400 | 475 | 380 | QSZ13-G3 | |
WP-C500GF | 500 | 400 | 450 | 360 | KTA19-G3 | |
WP-C550GF | 550 | 440 | 500 | 400 | KTA19-G3A/G4 | |
WP-C688GF | 688 | 550 | - | - | KTAA19-G6A | |
WP-C825GF | 825 | 660 | 750 | 600 | KTA38-G2 | |
WP-C880GF | 880 | 704 | 800 | 640 | KTA38-G2B | |
WP-C1000GF | 1000 | 800 | 910 | 728 | KTA38-G2A | |
WP-C1100GF | 1100 | 880 | 1000 | 800 | KTA38-G5 | |
WP-C1250GF | 1250 | 1000 | - | - | KTA38-G9 | |
WP-C1410GF | 1410 | 1128 | 1275 | 1020 | KTA50-G3 | |
WP-C1675GF | 1675 | 1340 | 1500 | 1200 | KTA50-GS8/G8 | |
WP-C550GF | 550 | 440 | 500 | 400 | QSX15G8 | |
WP-C880GF | 880 | 704 | 800 | 640 | QSK23-G3 | |
WP-C1100GF | 1100 | 880 | 1000 | 800 | QST30-G4 | |
WP-C2000GF | 2000 | 1600 | 1875 | 1500 | QSK60G3 | |
WP-C2250GF | 2250 | 1800 | 2045 | 1636 | QSK60G4 | |
WP-C2500GF | 2500 | 2000 | 2000 | 1600 | QSK60G8/13(21) |
Genset model | Standby Power | Prime Power | Cummins Engine | Specifications | ||
kVA | kW | kVA | kW | |||
WP-C28GF | 28 | 25 | 22 | 20 | 4B3.9-G11 | |
WP-C35GF | 35 | 32 | 28 | 25 | 4B3.9-G2 | |
WP-C38GF | 38 | 35 | 30 | 28 | 4B3.9-G12 | |
WP-C50GF | 50 | 45 | 40 | 36 | 4BT3.9-G2 | |
WP-C75GF | 75 | 68 | 60 | 54 | 4BTA3.9-G2 | |
WP-C96GF | 96 | 84 | 77 | 68 | 4BTA3.9-G11 | |
WP-C125GF | 125 | 113 | 100 | 90 | 6BT5.9-G2 | |
WP-C145GF | 145 | 130 | 116 | 104 | 6BTA5.9-G2 | |
WP-C165GF | 165 | 150 | 132 | 120 | 6BTAA5.9-G2 | |
WP-C184GF | 184 | 168 | 147 | 134 | 6BTAA5.9-G12 | |
WP-C220GF | 220 | 200 | 176 | 160 | 6CTA8.3-G2 | |
WP-C250GF | 250 | 230 | 200 | 184 | 6CTAA8.3-G2 | |
WP-C300GF | 300 | 273 | 228 | 208 | 6LTAA8.9-G2 | |
WP-C315GF | 315 | 283 | 252 | 226 | 6LTAA8.9-G3 | |
WP-C330GF | 330 | 300 | 264 | 240 | 6LTAA9.5-G3 | |
WP-C350GF | 350 | 315 | 280 | 252 | 6LTAA9.5-G1 | |
WP-C350GF | 350 | 312 | 280 | 250 | NTA855-G1 | |
WP-C385GF | 385 | 350 | 308 | 280 | NTA855-G1B | |
WP-C440GF | 440 | 400 | 352 | 320 | NTA855-G3 | |
WP-C500GF | 500 | 475 | 400 | 380 | QSZ13-G3 | |
WP-C575GF | 575 | 523 | 451 | 410 | KTA19-G3 | |
WP-C635GF | 635 | 580 | 508 | 464 | KTA19-G3A | |
WP-C750GF | 750 | - | 600 | - | KTAA19-G6A | |
WP-C1000GF | 1000 | 910 | 800 | 728 | KTA38-G2 | |
WP-C1130GF | 1130 | 1030 | 904 | 824 | KTA38-G2A | |
WP-C1265GF | 1265 | 1125 | 1000 | 900 | KTA38-G4 | |
WP-C1375GF | 1375 | - | 1100 | - | KTA38-G9 | |
WP-C1600GF | 1600 | 1410 | 1280 | 1128 | KTA50-G3 | |
WP-C1930GF | 1930 | 1610 | 1544 | 1288 | KTA50-G9 | |
WP-C1000GF | 1000 | 910 | 800 | 728 | QSK23-G3 | |
WP-C1265GF | 1265 | 1150 | 1012 | 920 | QST30-G4 | |
WP-C2125GF | 2125 | 1938 | 1700 | 1550 | QSK60-G5 | |
WP-C2500GF | 2500 | 2281 | 2000 | 1825 | QSK60-G7 |
